No name (leason) fernsteuerung von syma abklatsch quad für eachine wizard x220 wenn ja wie verbinden das funkrioniert?

Diese quad kam ohne funke. Wizard x220  - (Quadrocopter, Funkfernsteuerung, Flysky) Von diesem syma abklatsch funke für eachine wizard? - (Quadrocopter, Funkfernsteuerung, Flysky) Diese Quad wird noch kommen mit flysky. Auch für eachine? Zusammen benutzen.  - (Quadrocopter, Funkfernsteuerung, Flysky)

1 Antwort

ein Sender braucht einen Empfänger .. sonst kann das was gesendet wird nicht empfangen werden oder ? ... hast du einen Empfänger für deine Spielzeug funke ? ich denke nicht oder ?

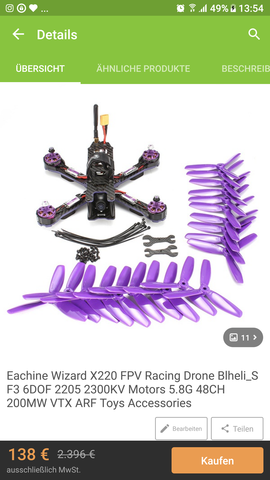

Eachine wizard :

Note:【This version comes without battery, charger, receiver or remote control.】
Different from the RTF version, the ARF comes with F3 6DOF flight controller and 2205 2300KV brushless motors.

Package included:
1 x Eachine Wizard X220
2 x 2205 KV2300 brushless motor CW
2 x 2205 KV2300 brushless motor CCW
4 x Eachine 20A BLHELI_S ESC
10 x Kingking 5040 3-blade propeller purple CW
10 x Kingking 5040 3-blade propeller purple CCW
1 x F3 6DOF flight controller
1 x 700TVL camera
1 x 5.8G 48CH 200mw transmitter
1 x Antenna
1 x Battery strap
2 x Wrench

Eachine Wizard X220:
Specification:
Wheelbase: 220mm
GMachine arm: 4mm carbon fiber
Flying times: 12 minutes
Weigh: 364g (without battery)
Take off weigh: 535g

Features:
Compatible with max 5 inch propeller
Compatible with 2206, 2208 motor
Can be used with 4S/3S battery
With Seft-protection function
With direction indicator LED
Inclined motor base design, fast speed
Removable protection motor base

2205 2300KV Motor:
KV : 2300
Propeller : 5 inch

Eachine 20A BLHELI_S ESC:
Item name : 20A BLHELI_S ESC
Con.Current : 20A
Peak Current(10s) : 25A
Input Voltage : 2-4S
BEC : No
Programming : YES
Firmware : Blheli_S
Weight :7.9g
Size(PCB) : 27*12mm

700TVL Camera:
Power supply : 3.6-5.5V (powered off TX)
Power consumption : 60mA @5V
Imager : 1/3” CMOS, 700TVL
Angle : 127° diagonal FOV, 110° horizontal FOV
FPV tuned light handling
System : PAL
Lens : 2.8mm IR coated
FOV : 127°diagonal 110°horizontal (ideal for fixed camera)
Operation temperature : -20 to 70°C
Square : 29 X 29 X 23.5mm
Lens extrude (LxDia) : 15mm X 14mm
Weight : 12g

5.8G 200mw 48ch Transmitter:
Item NO.: TS5823S
Modulate : Wideband FM Modulate
Video Format : NTSC/PAL
Output Impedance : 50 Ohm
Output Power : 23-24dBm
Channel:48 CH
Operating Voltage : 7V-24V
Supply Current : 190mA
Operating Temperature : -10~85℃
Video Band Width : 0~8.0 MHz
Audio Carrier Frequency : 6.5 MHz
Video Input Level : 0.8~1.2 Vp-p
Video Input Impedance : 75 Ohm
Audio Input Level : 0.5~2.0 Vp-p
Audio Input Impedance : 10K Ohm
Connector: RP-SMA Female (Inner needle)
Antenna Connector: RP-SMA Male (Inner hole)
Dimension: 40mm x 23mm x 8mm
Weight: 7.3g

0

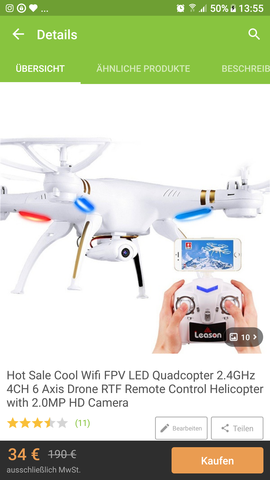

Leason syma abklatsch

Notes:
Size 1: Quadcopter with 2.0MP HD Camera
Size 2: Quadcopter with Wifi FPV

Features:
1. High Speed Shifting: The remote controller has two-gear shifting modes. The speed can be
shifted between low and high. So it is suitable for green hand and professionals.
2. Headless Mode: You do not need to figure out the direction of the quadcopter in headless mode. It can
automatically work out the direction of the remote controller after it is shifted to the headless mode.
3. 3D Flipping: It can finish various difficult actions, such as up and down flipping,
forward and afterward flipping, left and right flipping, 360°flipping, etc..
4. Sensitive 2.4GHz Frequency-amplifying Technique: Its reaction is quicker with the
2.4GHz high-frequency signal. The safe remote control distance can reach 100m.
5. Excellent anti-interference Performance: It supports the playing of
multiple quadscopters with the interference of each other.
6. Six-axle Gyroscope Controlling System: The inbuilt six-axle gyroscope system
guarantees the balance and stability of the quadscopter. The stable flying and
hovering makes the quadscopter can better taking photos or recoding videos in flying.
7. More Attractive in Night: Four LED lights are equipped at the bottom of the quadscopter.
So it is more attractive when it is flying in night.
8. Two Remote Controlling Manners: Remote controlling and controlling with APP are optional at your reference.

Specification:
Material: eco-friendly plastics and electronics parts
Suitable Group: above 14 years
Battery: 3.7V 550MAh Li-poly
Remote Controller Battery: 5*AA batteries(not included)
Charging Manner: USB
Charging Time: about 60min.
Flying Time: about 10min.
Remote Control Distance: about 70m
Camera: 2.0MP Camera/0.3MP Wifi FPV
Colors: white, black
Functions: rising, landing down, forward, backward, left turning, right turning, 360° flipping,
leftward flying, rightward flying, headless mode, photo taking, video recording

Package Included:
1*quadcopter
1*remote controller
4*anti-shock frame
1*screwdriver
2*spared fans
1*usb cable
4*landing mounts
1*user manual

0
@Gpunktchrissi

Use : Vehicles & Remote Control Toys
Technical parameters : Value 2
For Vehicle Type : Airplanes
Brand Name : OEM
Tool Supplies : Grinded
Remote Control Peripherals/Devices : Motor
RC Parts & Accs : Connectors/Wiring
Upgrade Parts/Accessories : Wheel Hub
Model Number : FPV
Four-wheel Drive Attributes : Slot
Material : Glassy Carbon Fiber
is_customized : Yes

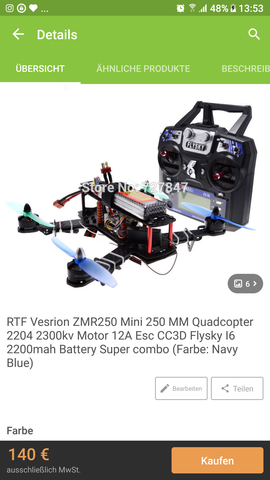

250 Mini Quadcopter + CC3D Flight Controller + Readytosky 2204 2300KV Motor+12A Simonk ESC+5030 propeller Description:250 Mini QuadcopterIntroduction :- Main material: full carbon fiber- Wheelbase: 250mm- With rubber damper to decrease vibration during flight- Aluminum alloy spacer, light weight, reliableSpecifications:- Wheelbase: 250mm- Weight: 140g- Prop suggest: 5*3- Motor suggest: 1804-2204- Battery suggest: 3S 1300-1800ma

CC3D Flight Controller
Introduction: OpenPilot is a next-generation Open Source UAV autopilot. It is a highly capable platform for multi-rotor craft, helicopters, as well as fixed wing aircraft. It has been designed from the ground up by a community of passionate developers from around the globe, with its core design principals being quality, safety, and ease of use. Simplicity does not come with any compromises either: with no hard-coded settings, a complete flight plan scripting language and other powerful features, OpenPilot is an extremely capable UAV autopilot platform. Will solder well for you.

already have bootloader firmware!

Readytosky S2204 2300KV Motor

Battery (Cell Lipo): 2-3S (tested to work with 4S)KV: 2300Length: 34.6mm including prop adaptor, 13.2mm excluding prop adaptorWidth: 27mmDiameter: 27.5mmProp adaptor Shaft Diameter(mm): 5Long-life Japanese NMB ball bearingsEfficient Japanese Kawasaki stator steelRare earth magnets stable up to 180Oxygen free pure copper wiresCNC machined aluminum caseSilicone wire leadsPatented balance techniquesUnique wiring method 12A Simonk ESCFeatures:Emax Simon 12A Brushless ESC Electronic Governor Supports 1-3S Small AxisIn Simonk program based and optimized to achieve the perfect driving effectWith low voltage protection, over temperature protection, and other functions on the Power On Self TestUp to speed: 210000 RPM (2 poles), 70,000 RPM (6 poles), 35000 (12 poles)MCU and BEC different regulator, independent of each other and improve the anti-jamming capabilityMultiple parameters can be obtained by governor (programming card) or remote settingsThrottle range can be configured to be compatible with different receivers, there is a very good low-speed performanceBuilt-in linear or switch-mode BEC BEC Package including :

1pcs 250 Mini Quadcopter (full carbon fiber )

1pcs CC3D Flight Controller with cables & protective case

1pcs CC3D Distribution Board

2 pcs LED Decoration Board

4pcs Readytosky S2204 2300KV Brushless Motor

4pcs Emax 12A Simonk ESC

1pcs Flysky I6 Trammitter & receiver

1pcs 3s 11.1v 2200mah battery

8 pcs 5030 propeller ( colors send at random )

Note :

RTF Version is readytofly version , the kit has already aeembled and set well .

Just assembled version is the kit which just aseembled ,and you need set by yourself .

Not assembled version is just a kit , you need assemble it by yourself .

0
